SMT Processing Services
Precision Placement, Quality Assurance
Professional surface mount technology processing, from solder paste printing to functional testing, providing complete SMT placement and quality inspection services.
Request a QuoteOur Services
Automated Placement
High-speed placement machines supporting 01005+ components, precise and efficient
SPI Inspection
Solder paste printing inspection with real-time thickness monitoring
AOI Inspection
Automated optical inspection ensuring placement quality for every board
Function Testing
ICT/FCT testing to ensure proper product functionality
Advanced Equipment
Industry-leading production and inspection equipment ensuring product quality

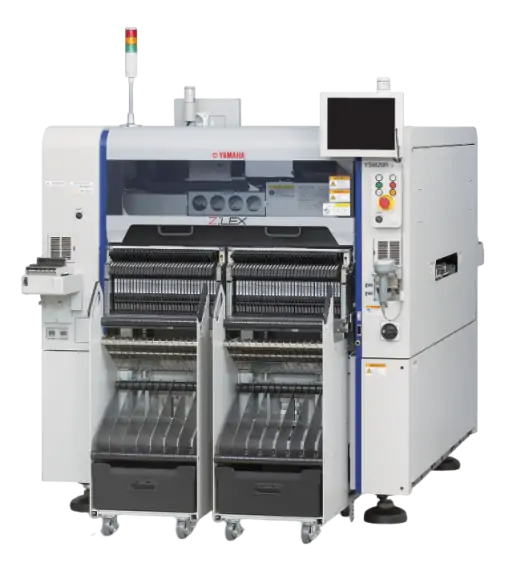

High-speed Placement Machine
• Speed: 95,000 CPH
• Components: 01005 ~ 42mm
• Accuracy: ±0.035mm

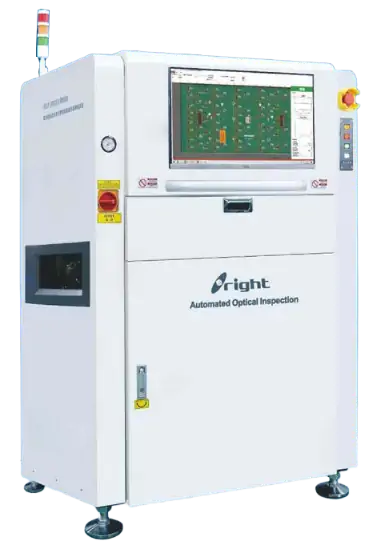

Inline AOI Inspection
• Camera: 12MP
• Resolution: 15μm
• Speed: 3300mm²/sec

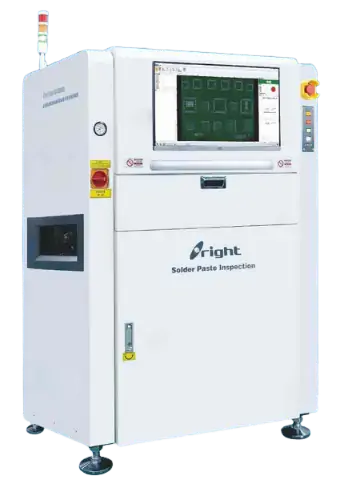

Inline SPI Inspection
• Precision solder paste detection
• Ensures soldering quality
• Real-time monitoring

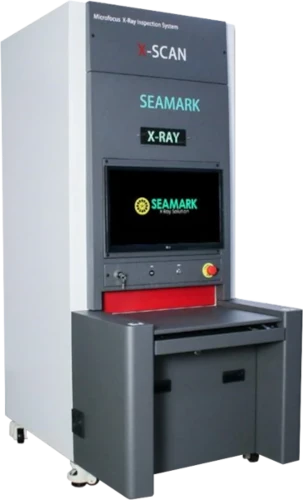

X-RAY Component Counter
• Counting: 12 sec/reel
• Accuracy: 99.98%+
• Min. component: 01005
SMT Process Capability
A complete reference of Shinly International's SMT capabilities including supported components, board specifications, and quality inspection coverage.
| Category | Item | Specification |
|---|---|---|
| Components | Min. component size | 01005 (0.4 × 0.2 mm) |
| Max. component size | 42 × 42 mm (incl. odd-form) | |
| Supported packages | QFP, QFN, BGA, CSP, LGA, POP | |
| Min. BGA pitch | 0.3 mm (μBGA) | |
| Production | PCB size range | 50 × 50 mm to 500 × 460 mm |
| PCB thickness | 0.4 ~ 4.0 mm | |
| Placement accuracy | ±0.035 mm (Cpk ≥ 1.33) | |
| Line speed | 95,000 CPH (dual line: 190,000 CPH) | |
| Inspection | SPI (solder paste) | 100% inline, 3D measurement |
| AOI (optical) | 100% inline, 12MP camera, 15 μm resolution | |
| X-RAY | BGA / hidden joints / voids inspection | |
| Functional test | ICT, FCT, Burn-in, Aging Test | |
| Standards | Solder type | Lead-free (RoHS / REACH compliant) |
| Production environment | Climate-controlled, ESD-safe lines | |
| Quality standards | ISO 9001:2015, IPC-A-610 Class 2/3 |
Complete SMT Process Flow
From BOM and Gerber receipt to final shipment, Shinly International follows a standardized SMT workflow with dedicated QC at every stage, achieving 99.5%+ first-pass yield.
Incoming QC (IQC)
Component verification, visual inspection, MSL-based storage of moisture-sensitive parts, and BOM cross-checking to prevent part errors.
Solder Paste Printing
Fully automated stencil printer with inline SPI thickness measurement to ensure consistent paste volume — the foundation of solder joint quality.
High-Speed Placement
Dual-track placement at 95,000 CPH. Handles 01005 micro components up to 42mm odd-form parts with ±0.035mm accuracy.
Reflow Soldering
12-zone lead-free reflow oven with precise temperature profiling to prevent cold joints, tombstoning, and BGA voids.
AOI Inspection
Inline AOI catches missing parts, polarity errors, misalignment, and tombstones — flagged in real time for line feedback.
X-RAY Inspection
For hidden joints under BGA, QFN, LGA where visual inspection is impossible, X-RAY confirms joint integrity.
Functional / ICT Test
Customer-fixture ICT line testing and FCT functional testing. Volume orders may include Burn-in and Aging Test.
Outgoing QC (OQC)
Pre-shipment OQC sampling, ESD-safe packaging, with SGS / RoHS / COC documentation included for full traceability.
Frequently Asked Questions
The questions our SMT customers ask most often
Q1. What is your minimum order quantity (MOQ) for SMT processing?＋
Shinly International supports both prototype and high-volume production. The minimum is 1 board for prototyping. For volume production, we recommend 100+ units for better pricing and lead time.
Q2. How long does SMT prototyping take?＋
Standard SMT prototype lead time is 3-5 business days from when BOM, Gerber, and components are all available. Rush orders can be completed in 24-48 hours depending on component availability.
Q3. Can you source components, or only consigned material?＋
Both. Turnkey: Shinly handles all component sourcing and inventory. Consigned: customer provides main components and we supplement minor parts and handle production.
Q4. What files do I need to provide for a quote?＋
Complete BOM (with brand and part numbers), Gerber files (including stencil aperture file), and Pick & Place file. For special testing, include test specs and fixture details.
Q5. What quality documents are included with shipment?＋
Standard documents: COC (Certificate of Conformance), First Article Inspection (FAI) report, AOI / X-RAY sampling records. Additional: SGS / RoHS / REACH reports, IPC-A-610 inspection reports available on request.
Q6. Are your production lines suitable for medical, automotive, or military applications?＋
Shinly is ISO 9001:2015 certified and follows IPC-A-610 Class 2/3 for quality judgment. Our lines are ESD-protected and climate-controlled, suitable for most consumer electronics, industrial control, and automotive electronics applications.
